    Brain and Behavior. 2020;10:e01744. | 1 of 6
https://doi.org/10.1002/brb3.1744
wileyonlinelibrary.com/journal/brb3
1 | INTRODUCTION
Electronic cigarettes (e-cigarettes), based on the vaporization of
e-liquid (a solution composed of nicotine, vegetable glycerine, and
propylene glycol), have become very common worldwide. However,
despite regulatory parameters, such as the maximum nicotine concentration of 20mg/ml, for e-liquids having been proposed worldwide (Food & Drug Administration, HHS, 2016), e-liquid solution
Received: 10 March 2020  |  Revised: 13 May 2020  |  Accepted: 7 June 2020
DOI: 10.1002/brb3.1744
COMMENTARY
Brain death following ingestion of E-cigarette liquid nicotine
refill solution
Maenia Scarpino1,2 | Manuela Bonizzoli3 | Cecilia Lanzi4 | Giovanni Lanzo1 |
Chiara Lazzeri3 | Giovanni Cianchi3 | Francesco Gambassi4 | Francesco Lolli5 |
Antonello Grippo1,2
This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium,
provided the original work is properly cited.
© 2020 The Authors. Brain and Behavior published by Wiley Periodicals LLC.
1
Neurophysiopathology Unit,
Neuromuscular Department, AOU Careggi,
Florence, Italy
2
IRCCS Don Carlo Gnocchi, Florence, Italy
3
Traumatic Intensive Care Unit,
Neuromuscolar Department, AOU Careggi,
Florence, Italy
4
Clinical Toxicology, Emergency
Department, AOU Careggi, Florence, Italy
5
Biomedical Science Department Mario
Serio, University of Florence, Florence, Italy
Correspondence
Antonello Grippo, SODc
Neurofisiopatologia, Dipartimento
Neuromuscoloscheletrico e degli Organi di
Senso – AOU Careggi, Largo Brambilla 3,
50134 Firenze, Italy.
Email: agrippo@unifi.it
Abstract
Background: The use of electronic cigarettes (e-cigarettes) is very common worldwide. To date, an increase of nicotine intoxication following an accidental or intentional ingestion/injection of refill solution (e-liquid) has been detected.
Case: A 23-year-old man presented with sudden loss of consciousness, bradycardia,
and respiratory muscle paralysis after intentional ingestion of e-liquid. Early clinical
data, brain computed tomography, and neurophysiological tests (electroencephalogram [EEG] and somatosensory evoked potentials [SEPs]) did not show features with
a poor neurological prognostic meaning of an hypoxic encephalopathy. After 4 days,
the patient showed bilateral loss of the pupillary reflex, and severe and cytotoxic
edema was detected on brain magnetic resonance imaging. SEPs showed a bilateral
loss of cortical responses and EEG a suppressed pattern. Nine days after the onset of
coma, the patient evolved toward brain death (BD).
Discussion: Because nicotine intoxication might cause respiratory muscle paralysis,
without cardiac arrest (CA), it would be important to understand the mechanisms
underlying brain damage and to take into account that the current neurological prognostic evidence for hypoxic–ischemic encephalopathy, based on data from patients
who all experienced CA may not be reliable. Reporting cases of nicotine intoxication
through e-liquid is relevant in order to improve regulatory parameters for e-liquid
sale.
KEYWORDS
brain death, cotinine, e-liquid, nicotine
    1/6
    2 of 6  |     SCARPINO et al.
with nicotine concentrations of up to 60mg/ml can still be easily
purchased online. This has come to represent a relevant health problem in the last decade because of the increase in cases of accidental
or intentional poisoning through the ingestion and/or the injection
of e-liquid. The most prevalent reported symptoms related to nicotine intoxication are tachycardia, hypertension, vomiting, diarrhea,
agitation, and headache (Maessen et al., 2020). However, when high
doses of nicotine are ingested and/or injected, bradycardia, hypotension, altered mental status, seizures, and, albeit rarely, death
due to cardiac arrest (CA) might develop (Benowitz, 2008). To date,
there is still no consensus on nicotine lethal dose. Recently, Maessen
et al. (2020) reported that the minimum lethal nicotine plasma concentration was set at values between 800 and 1,600 µg/L (Maessen
et al., 2020), which were higher than the previously accepted value
(180 µg/L; Mayer, 2014). We report a case of severe brain injury,
evolving toward brain death(BD) after nicotine intoxication, following an intentional ingestion of e-liquid as a suicide attempt.
2 | CASE
A 23-year-old man was admitted to the emergency department (ED) of
Careggi Hospital, Florence, in a comatose state after the ingestion of
two e-cigarette refills. Immediately after the ingestion of the e-liquid,
the patient had a sudden loss of consciousness with vomiting, followed
by bradycardia and respiratory muscle paralysis. Cardiopulmonary resuscitation was started few minutes later by a neighbor (an anesthesiologist doctor). After 20 min, the patient found unconscious but with
a pulse by the emergency team of physicians, underwent orotracheal
intubation and was later admitted to the ED.
At the time to the arrival to the ED, the patient was hemodynamically stable with no need for vasoactive drugs (blood pressure
130/80 mm Hg, pulse 80 bpm). The blood gas analysis was as follows:
pH 7.3, pCO2 43 mm Hg, pO2 120 mm Hg, BE: – 0.4 mmol/L, cHCO3:
24, SpO2 97%, and FiO2 0.3. He underwent gastric lavage with retrieval
of a brownish viscose liquid. Liquid paraffin was administered by the
same route given the oily nature of the xenobiotic ingested. The first
blood sample, collected at about 2 hr postnicotine ingestion and tested
for nicotine and cotinine concentration by liquid chromatography–tandem mass spectrometry (lc-ms/ms), showed a peak value of plasmatic
nicotine of 1,900 µg/L, while the cotinine peak value was 2,100 µg/L
(Figure 1). No positivity to other drugs was detected. A brain computed
tomography (CT) showed no signs of brain edema or other signs of severe hypoxic encephalopathy, with a gray matter/white matter (GM/
WM) ratio = 1.32 (Figure 2a). The patient was thus admitted to the
intensive care unit (ICU) with a Glasgow coma scale ≤ 3 but with the
bilateral presence of the pupillary reflex. After the admission to the
ICU, an echocardiographic assessment and electrocardiogram (ECG)
were performed, showing normal findings. The oxygenation index
was good (P/F > 300). During ICU stay, the patient remained hemodynamically stable and no arrhythmic events were detected on ECG
monitoring. At about 7 hr after coma onset, an electroencephalogram
(EEG), recorded in the absence of sedation, and somatosensory evoked
potentials (SEPs) were performed, showing a nonreactive near-continuous low-voltage pattern and the bilateral presence with normal voltage of the cortical response (N20) (SEP pattern NN), respectively. At
24 hr after coma onset, EEG became continuous with normal voltage
and with inconstant reactivity (Figure 2b), and SEPs still showed a NN
pattern (Figure 2c,d).
Four days after coma onset, the patient lost the pupillary reflexes. At this time, the cortical SEP responses became pathological/absent (PA; Figure 3c,d) and the EEG became suppressed and
areactive (Figure 3b). On the same day, a brain magnetic resonance
imaging (MRI) was performed, revealing the presence of severe and
diffuse cytotoxic edema. In particular, a diffuse hyperintensity was
observed bilaterally in the parieto-occipital lobes and at the level of
the frontal lobes on diffusion-weighted imaging and on fluid-attenuated inversion recovery-weighted imaging (Figure 3a). A reduced
diffusion measured with apparent diffusion coefficient was also
detected. At last, a transcranial Doppler examination documented
symmetrical flow acceleration of all arteries of the base, indicating
hyperinflow. The day after, an isoelectric EEG pattern and an absent/
absent (AA) cortical SEP pattern were detected in the presence,
however, of the bilateral lemniscal wave, generated at the bulbar
level. Nine days after coma onset, the patient showed the loss of
respiratory drive and evolved toward BD.
2.1 | Ethical statement
We confirm that we have read the journal's position on issues involved in ethical publication and affirm that this report is consistent
with those guidelines.
3 | DISCUSSION
This represents the first case of evolution toward BD after nicotine
intoxication occurring in Italy and related exclusively to oral ingestion

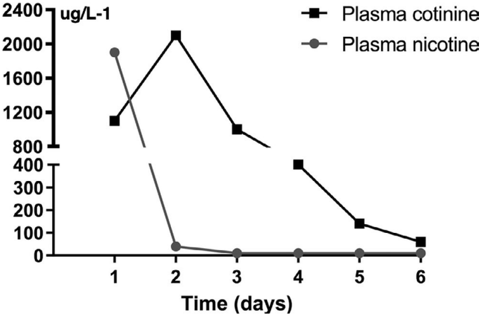

FIGURE 1 Plasmatic concentration of nicotine and cotinine
measured by LC/MS-MS technique
 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    2/6
         | SCARPINO et al.  3 of 6
of e-liquid. In the only previous reported Italian case (Cervellin, Luci,
& Bellini, 2013), in fact the patient mixed e-liquid with methadone
and took the solution both orally and intravenously.
To date, only few cases of fatal acute intoxication with a known
quantity of nicotine or precise plasma concentration have been published. Moreover, mechanisms underlying nicotine toxicity at both
the central and peripheral nervous system (CNS/CNP) levels are still
unclear. High doses of nicotine, as reported in our case, in whom
the nicotine plasma concentration was higher than the cutoff considered to be lethal in recent literature (Maessen et al., 2020), might
produce an inhibitory effect, acting through ganglionic blockade
and thereby resulting in bradycardia, hypotension, and respiratory
muscle paralysis (Maessen et al., 2020). At the CNS level, instead,
high doses of nicotine might cause desensitization of the cholinergic
receptors that normally stimulate GABAergic interneurons, resulting in reduced GABAergic activity and consequently in a reduced
inhibitory effect. This mechanism could cause hyperexcitability of
the CNS with an imbalance of the neurotransmitter system and a
consequent increase in the release of excitatory neurotransmitters,
triggering neuronal apoptosis (Dobelis, Hutton, & Lu, 2003).
In the case of oral poisoning, the prognosis usually appears to
be better, since the actual bioavailability of nicotine is affected by a
number of factors, such as rapid metabolism to an inactive metabolite, intense vomiting (acting as auto-decontamination), and limited
absorption in the stomach (depending on pH), even though nicotine
is well absorbed in the small intestine (Maessen et al., 2020).
However, in our case, the ingested nicotine dose was high
enough to cause respiratory muscle paralysis and a comatose state.
Only in few other reported cases (Chen, Bright, & Trivedi, 2015;
Morley, Slaughter, & Smith, 2017; Seo, Kim, & Yu, 2016), ingested
nicotine dose was high enough to cause patient death, however,
due to CA. In our case, there could be multiple mechanisms causing brain damage. The respiratory muscle paralysis, resulting in a
reduced oxygen supply at the CNS level, could have determined
a hypoxic encephalopathy. However, both the neurophysiological
(EEG/SEPs) and neuroimaging data (brain CT), performed at an
early stage (within 12 hr) after coma onset, did not show findings
with high unfavorable neurological prognostic significance (Carrai
et al., 2019; Scarpino, Carrai, et al., 2019; Scarpino, Grippo, Lanzo,
& Lolli, 2018a; Scarpino, Lanzo, et al., 2018; Scarpino, Lolli, et al.,
FIGURE 2 Neuroimaging and neurophysiological data within 24h after coma onset: (a) brain CT: no signs of brain edema or other signs of
severe hypoxic encephalopathy: gray matter/white matter (GM/WM) ratio = 1.32; (b) EEG: continuous EEG pattern with normal voltage and
with inconstant reactivity (c, d) SEPs: bilateral presence with normal voltage of cortical response (N20) (SEP pattern NN)
 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    3/6
    4 of 6  |     SCARPINO et al.
2019). In particular, the nearly continuous low-voltage EEG pattern, observed earlier than 12 hr after coma onset, as in our case,
is usually associated with a good neurological outcome (Scarpino,
Carrai, et al., 2019). Moreover, patients with hypoxic–ischemic encephalopathy (HIE) evolving toward BD usually show, in the first
24 hr after coma onset, a marked alteration of SEP cortical responses (SEP pattern AA or AP; Scarpino et al., 2017), while in
our case, SEP cortical responses were bilaterally normal. At last,
early brain CT also did not show evidence of severe edema suggestive of an evolution toward BD (GM/WM ratio > 1.07; Scarpino
et al., 2017). However, in the following few days, the patient
showed a progressive worsening of all the clinical and instrumental parameters, revealing a neurological deterioration: He lost the
pupillary reflexes, SEPs transitioned from a NN pattern to an AP
pattern, EEG became suppressed and isoelectric in the last days,
and severe brain edema was detected on MRI. This progressive
neurological deterioration might be related to the development
of secondary brain damage, which is sometimes observed in patients with HIE after CA, even though, in our case, early clinical
and instrumental data did not show features suggesting the occurrence of secondary brain damage (Scarpino, Carrai, et al., 2019).
However, it is possible that nicotine intoxication, having caused
only respiratory muscle paralysis, without CA, might have triggered mechanisms of hypoxic brain damage that could be different
from those of classic HIE, and, for this reason, the current neurological prognostic evidence for HIE may not be reliable, since they
were based on data from patients who all experienced CA. At last,
besides the hypoxic damage, we cannot exclude that high doses
of nicotine could have also caused direct neuronal apoptosis,
secondary to an increase in the release of excitatory neurotransmitters at the CNS level (Dobelis et al., 2003). At the same time,
nicotine, binding to specific nicotinic receptors and consequently
causing an increase in acetylcholine release and depolarization of
cerebral microvascular muscles, might cause diffuse vasoconstriction and thrombosis (Maessen et al., 2020). These phenomena,
causing severe and diffuse brain ischemia, might have determined
a worsening of the brain edema. However, in our opinion, brain
damage due to mechanisms related to the direct action of nicotine on the CNS would be less likely, because nicotine usually
shows early action with a rapid transition to its inactive metabolite (Figure 1); consequently, its neurological effects should also
be evident at an early stage after ingestion/injection (Maessen
FIGURE 3 Neurophysiological and neuroimaging data four days after coma onset: (a) MRI: hyperintensity on fluid-attenuated inversion
recovery-weighted imaging at bilateral parieto-occipital lobes and at frontal level: (b) EEG: EEG suppressed pattern; (c, d) SEPs: bilateral
deterioration of the cortical responses with a pattern pathological (c) and absent (d)
 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    4/6
         | SCARPINO et al.  5 of 6
et al., 2020), which is different from our case. At last, a large literature suggests a neuroprotective effect of nicotine, mainly in
chronic neurological degenerative condition such as cognitive
deterioration (Alkadhi, 2018), Parkinson's disease (Quik, Bordia,
Zhang, & Perez, 2015), and Tourette's syndrome (Quik, Bordia,
Zhang, & Perez, 2014). However, this protective effect, as well as
central or peripheral nervous system stimulation with arousal and
increase in heart rate or blood pressure, is induced by low dose of
nicotine, different from our case.
4 | CONCLUSION
The constant reporting of cases of nicotine intoxication through eliquid both accidental or intentional is an important goal in order to
raise the awareness of the Food and Drug Administration in improving regulatory parameters for e-liquid and in increasing the monitoring of online stores.
Because nicotine intoxication might cause respiratory muscle paralysis, without CA, it would be important to understand the mechanisms underlying brain damage and to take into account that the
current neurological prognostic evidence for HIE may not be reliable.
CONFLICT OF INTEREST
None of the authors has any conflict of interest to disclose.
AUTHOR CONTRIBUTIONS
Maenia Scarpino, Manuela Bonizzoli, Cecilia Lanzi, Chiara Lazzeri,
Giovanni Cianchi, and Francesco Gambassi participated in the
clinical practice, including diagnosis, treatment, consultation, and
during the ICU stay of the patient. Giovanni Lanzo, Cecilia Lanzi,
and Chiara Lazzeri contributed to the acquisition of data. Maenia
Scarpino, Cecilia Lanzi, and Chiara Lazzeri contributed to the analysis of data. Maenia Scarpino wrote the manuscript. Antonello Grippo
and Francesco Lolli revised the manuscript. All authors approved the
final version of the manuscript.
PEER REVIEW
The peer review history for this article is available at https://publo
ns.com/publon/10.1002/brb3.1744.
DATA AVAILABILITY STATEMENT
The data that support the findings of this study are available from
the corresponding author upon reasonable request.
ORCID
Antonello Grippo https://orcid.org/0000-0002-9997-8564
REFERENCES
Alkadhi, K. A. (2018). Neuroprotective effects of nicotine on hippocampal long-term potentiation in Brain Disorders. Journal of
Pharmacology and Experimental Therapeutics, 366, 498–508. https://
doi.org/10.1124/jpet.118.247841
Benowitz, N. L. (2008). Clinical pharmacology of nicotine: Implications
for understanding, preventing, and treating tobacco addiction.
Clinical Pharmacology and Therapeutics, 835, 31–41.
Carrai, R., Scarpino, M., Lolli, F., Spalletti, M., Lanzo, G., Peris, A., …
Grippo, A. (2019). Early-SEPs’ amplitude reduction is reliable for
poor-outcome prediction after cardiac arrest? Acta Neurologica
Scandinavica, 139, 158–165. https://doi.org/10.1111/ane.13030
Cervellin, G., Luci, M., & Bellini, C. (2013). Badnewsabout an oldpoison.
A case of nicotine poisoningdue to bothingestion and injection of the
content of an electronic cigarette refill. Emergency Care Journal, 9, 18.
https://doi.org/10.4081/ecj.2013.e18
Chen, B. C., Bright, S. B., & Trivedi, A. R. (2015). Death following intentional ingestion of e-liquid. Clinical Toxicology, 53, 914–916. https://
doi.org/10.3109/15563650.2015.1090579
Dobelis, P., Hutton, S., & Lu, Y. (2003). GABAergic systems modulate nicotinic receptor-mediated seizures in mice. Journal of Pharmacology and
Experimental Therapeutics, 306, 1159–1166. https://doi.org/10.1124/
jpet.103.053066
Food and Drug Administration, HHS. (2016). Deeming tobacco products to be subject to the Federal Food, Drug, and CosmeticAct,
asamended by the Family Smoking Prevention and Tobacco Control
Act; Restrictions on the sale and distribution of tobacco products
and require warning statements for products. Final rule. Federal
Register, 81, 28973–29106.
Maessen, G. C., Wijnhoven, A. M., Neijzen, R. L., Paulus, M. C., van
Heel, D. A. M., Bomers, B. H. A., … van der Heyden, M. A. G. (2020).
Nicotine intoxication by e-cigarette liquids: A study of case reports and pathophysiology. Clinical Toxicology, 58, 1–8. https://doi.
org/10.1080/15563650.2019.1636994
Mayer, B. (2014). How much nicotine kills a human? Tracing back the
generallyacceptedlethal dose to dubious self-experiments in the
nineteenth century. Archives of Toxicology, 88, 5–7. https://doi.
org/10.1007/s00204-013-1127-0
Morley, S., Slaughter, J., & Smith, P. R. (2017). Death from ingestion of
e-liquid. The Journal of Emergency Medicine, 53, 862–864. https://doi.
org/10.1016/j.jemermed.2017.06.029
Quik, M., Bordia, T., Zhang, D., & Perez, X. A. (2014). Role for the nicotinic
cholinergic system in movement disorders; therapeutic implications.
Pharmacology & Therapeutics, 144, 50–59. https://doi.org/10.1016/j.
pharmthera.2014.05.004
Quik, M., Bordia, T., Zhang, D., & Perez, X. A. (2015). Nicotine and nicotinic receptor drugs: Potential for Parkinson's disease and drug-induced movement disorders. International Review of Neurobiology, 124,
247–271.
Scarpino, M., Carrai, R., Lolli, F., Lanzo, G., Spalletti, M., Valzania, F.,
Grippo, A., & (2019). Neurophysiology for predicting good and
poor neurological outcome at 12 and 72 h after cardiac arrest: The
ProNeCA multicentre prospective study. Resuscitation, 147, 95–103.
Scarpino, M., Grippo, A., Lanzo, G., & Lolli, F. (2018). The burden of clinical neurophysiology for the neurological prognosis of coma. Future
Neurology, 13, 127–129. https://doi.org/10.2217/fnl-2018-0013
Scarpino, M., Lanzo, G., Lolli, F., Carrai, R., Moretti, M., Spalletti, M., …
Grippo, A. (2018). Data on multimodal approach for early poor outcome (Cerebral Performance Categories 3–5) prediction after cardiac arrest. Data in Brief, 19, 704–711. https://doi.org/10.1016/j.
dib.2018.05.118
Scarpino, M., Lanzo, G., Lolli, F., Moretti, M., Carrai, R., Migliaccio, M. L.,
… Grippo, A. (2017). Is brain computed tomography combined with
somatosensory evoked potentials useful in the prediction of brain
death after cardiac arrest? Neurophysiologie Clinique, 47, 327–335.
https://doi.org/10.1016/j.neucli.2017.07.002
Scarpino, M., Lolli, F., Lanzo, G., Carrai, R., Spalletti, M., Valzania, F., …
Grippo, A. (2019). Neurophysiology and neuroimaging accurately
predict poor neurological outcome within 24 hours after cardiac arrest: The ProNeCA prospective multicentre prognostication study.
 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    5/6
    6 of 6  |     SCARPINO et al.
Resuscitation, 143, 115–123. https://doi.org/10.1016/j.resuscitat
ion.2019.07.032
Seo, A. D., Kim, D. C., & Yu, H. J. (2016). Accidental ingestion of E-cigarette
liquid nicotine in a 15-month-old child: An infant mortality case of
nicotine intossication. Korean Journal of Pediatrics, 59, 490–493.
How to cite this article: Scarpino M, Bonizzoli M, Lanzi C,
et al. Brain death following ingestion of E-cigarette liquid
nicotine refill solution. Brain Behav. 2020;10:e01744. https://
doi.org/10.1002/brb3.1744
 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    6/6

    Brain death following ingestion of E‐cigarette liquid nicotine refill solution

    • 1. Brain and Behavior. 2020;10:e01744. | 1 of 6 https://doi.org/10.1002/brb3.1744 wileyonlinelibrary.com/journal/brb3 1 | INTRODUCTION Electronic cigarettes (e-cigarettes), based on the vaporization of e-liquid (a solution composed of nicotine, vegetable glycerine, and propylene glycol), have become very common worldwide. However, despite regulatory parameters, such as the maximum nicotine concentration of 20mg/ml, for e-liquids having been proposed worldwide (Food & Drug Administration, HHS, 2016), e-liquid solution Received: 10 March 2020  |  Revised: 13 May 2020  |  Accepted: 7 June 2020 DOI: 10.1002/brb3.1744 COMMENTARY Brain death following ingestion of E-cigarette liquid nicotine refill solution Maenia Scarpino1,2 | Manuela Bonizzoli3 | Cecilia Lanzi4 | Giovanni Lanzo1 | Chiara Lazzeri3 | Giovanni Cianchi3 | Francesco Gambassi4 | Francesco Lolli5 | Antonello Grippo1,2 This is an open access article under the terms of the Creative Commons Attribution License, which permits use, distribution and reproduction in any medium, provided the original work is properly cited. © 2020 The Authors. Brain and Behavior published by Wiley Periodicals LLC. 1 Neurophysiopathology Unit, Neuromuscular Department, AOU Careggi, Florence, Italy 2 IRCCS Don Carlo Gnocchi, Florence, Italy 3 Traumatic Intensive Care Unit, Neuromuscolar Department, AOU Careggi, Florence, Italy 4 Clinical Toxicology, Emergency Department, AOU Careggi, Florence, Italy 5 Biomedical Science Department Mario Serio, University of Florence, Florence, Italy Correspondence Antonello Grippo, SODc Neurofisiopatologia, Dipartimento Neuromuscoloscheletrico e degli Organi di Senso – AOU Careggi, Largo Brambilla 3, 50134 Firenze, Italy. Email: agrippo@unifi.it Abstract Background: The use of electronic cigarettes (e-cigarettes) is very common worldwide. To date, an increase of nicotine intoxication following an accidental or intentional ingestion/injection of refill solution (e-liquid) has been detected. Case: A 23-year-old man presented with sudden loss of consciousness, bradycardia, and respiratory muscle paralysis after intentional ingestion of e-liquid. Early clinical data, brain computed tomography, and neurophysiological tests (electroencephalogram [EEG] and somatosensory evoked potentials [SEPs]) did not show features with a poor neurological prognostic meaning of an hypoxic encephalopathy. After 4 days, the patient showed bilateral loss of the pupillary reflex, and severe and cytotoxic edema was detected on brain magnetic resonance imaging. SEPs showed a bilateral loss of cortical responses and EEG a suppressed pattern. Nine days after the onset of coma, the patient evolved toward brain death (BD). Discussion: Because nicotine intoxication might cause respiratory muscle paralysis, without cardiac arrest (CA), it would be important to understand the mechanisms underlying brain damage and to take into account that the current neurological prognostic evidence for hypoxic–ischemic encephalopathy, based on data from patients who all experienced CA may not be reliable. Reporting cases of nicotine intoxication through e-liquid is relevant in order to improve regulatory parameters for e-liquid sale. KEYWORDS brain death, cotinine, e-liquid, nicotine
    • 2. 2 of 6  |     SCARPINO et al. with nicotine concentrations of up to 60mg/ml can still be easily purchased online. This has come to represent a relevant health problem in the last decade because of the increase in cases of accidental or intentional poisoning through the ingestion and/or the injection of e-liquid. The most prevalent reported symptoms related to nicotine intoxication are tachycardia, hypertension, vomiting, diarrhea, agitation, and headache (Maessen et al., 2020). However, when high doses of nicotine are ingested and/or injected, bradycardia, hypotension, altered mental status, seizures, and, albeit rarely, death due to cardiac arrest (CA) might develop (Benowitz, 2008). To date, there is still no consensus on nicotine lethal dose. Recently, Maessen et al. (2020) reported that the minimum lethal nicotine plasma concentration was set at values between 800 and 1,600 µg/L (Maessen et al., 2020), which were higher than the previously accepted value (180 µg/L; Mayer, 2014). We report a case of severe brain injury, evolving toward brain death(BD) after nicotine intoxication, following an intentional ingestion of e-liquid as a suicide attempt. 2 | CASE A 23-year-old man was admitted to the emergency department (ED) of Careggi Hospital, Florence, in a comatose state after the ingestion of two e-cigarette refills. Immediately after the ingestion of the e-liquid, the patient had a sudden loss of consciousness with vomiting, followed by bradycardia and respiratory muscle paralysis. Cardiopulmonary resuscitation was started few minutes later by a neighbor (an anesthesiologist doctor). After 20 min, the patient found unconscious but with a pulse by the emergency team of physicians, underwent orotracheal intubation and was later admitted to the ED. At the time to the arrival to the ED, the patient was hemodynamically stable with no need for vasoactive drugs (blood pressure 130/80 mm Hg, pulse 80 bpm). The blood gas analysis was as follows: pH 7.3, pCO2 43 mm Hg, pO2 120 mm Hg, BE: – 0.4 mmol/L, cHCO3: 24, SpO2 97%, and FiO2 0.3. He underwent gastric lavage with retrieval of a brownish viscose liquid. Liquid paraffin was administered by the same route given the oily nature of the xenobiotic ingested. The first blood sample, collected at about 2 hr postnicotine ingestion and tested for nicotine and cotinine concentration by liquid chromatography–tandem mass spectrometry (lc-ms/ms), showed a peak value of plasmatic nicotine of 1,900 µg/L, while the cotinine peak value was 2,100 µg/L (Figure 1). No positivity to other drugs was detected. A brain computed tomography (CT) showed no signs of brain edema or other signs of severe hypoxic encephalopathy, with a gray matter/white matter (GM/ WM) ratio = 1.32 (Figure 2a). The patient was thus admitted to the intensive care unit (ICU) with a Glasgow coma scale ≤ 3 but with the bilateral presence of the pupillary reflex. After the admission to the ICU, an echocardiographic assessment and electrocardiogram (ECG) were performed, showing normal findings. The oxygenation index was good (P/F > 300). During ICU stay, the patient remained hemodynamically stable and no arrhythmic events were detected on ECG monitoring. At about 7 hr after coma onset, an electroencephalogram (EEG), recorded in the absence of sedation, and somatosensory evoked potentials (SEPs) were performed, showing a nonreactive near-continuous low-voltage pattern and the bilateral presence with normal voltage of the cortical response (N20) (SEP pattern NN), respectively. At 24 hr after coma onset, EEG became continuous with normal voltage and with inconstant reactivity (Figure 2b), and SEPs still showed a NN pattern (Figure 2c,d). Four days after coma onset, the patient lost the pupillary reflexes. At this time, the cortical SEP responses became pathological/absent (PA; Figure 3c,d) and the EEG became suppressed and areactive (Figure 3b). On the same day, a brain magnetic resonance imaging (MRI) was performed, revealing the presence of severe and diffuse cytotoxic edema. In particular, a diffuse hyperintensity was observed bilaterally in the parieto-occipital lobes and at the level of the frontal lobes on diffusion-weighted imaging and on fluid-attenuated inversion recovery-weighted imaging (Figure 3a). A reduced diffusion measured with apparent diffusion coefficient was also detected. At last, a transcranial Doppler examination documented symmetrical flow acceleration of all arteries of the base, indicating hyperinflow. The day after, an isoelectric EEG pattern and an absent/ absent (AA) cortical SEP pattern were detected in the presence, however, of the bilateral lemniscal wave, generated at the bulbar level. Nine days after coma onset, the patient showed the loss of respiratory drive and evolved toward BD. 2.1 | Ethical statement We confirm that we have read the journal's position on issues involved in ethical publication and affirm that this report is consistent with those guidelines. 3 | DISCUSSION This represents the first case of evolution toward BD after nicotine intoxication occurring in Italy and related exclusively to oral ingestion FIGURE 1 Plasmatic concentration of nicotine and cotinine measured by LC/MS-MS technique 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    • 3.      | SCARPINO et al.  3 of 6 of e-liquid. In the only previous reported Italian case (Cervellin, Luci, & Bellini, 2013), in fact the patient mixed e-liquid with methadone and took the solution both orally and intravenously. To date, only few cases of fatal acute intoxication with a known quantity of nicotine or precise plasma concentration have been published. Moreover, mechanisms underlying nicotine toxicity at both the central and peripheral nervous system (CNS/CNP) levels are still unclear. High doses of nicotine, as reported in our case, in whom the nicotine plasma concentration was higher than the cutoff considered to be lethal in recent literature (Maessen et al., 2020), might produce an inhibitory effect, acting through ganglionic blockade and thereby resulting in bradycardia, hypotension, and respiratory muscle paralysis (Maessen et al., 2020). At the CNS level, instead, high doses of nicotine might cause desensitization of the cholinergic receptors that normally stimulate GABAergic interneurons, resulting in reduced GABAergic activity and consequently in a reduced inhibitory effect. This mechanism could cause hyperexcitability of the CNS with an imbalance of the neurotransmitter system and a consequent increase in the release of excitatory neurotransmitters, triggering neuronal apoptosis (Dobelis, Hutton, & Lu, 2003). In the case of oral poisoning, the prognosis usually appears to be better, since the actual bioavailability of nicotine is affected by a number of factors, such as rapid metabolism to an inactive metabolite, intense vomiting (acting as auto-decontamination), and limited absorption in the stomach (depending on pH), even though nicotine is well absorbed in the small intestine (Maessen et al., 2020). However, in our case, the ingested nicotine dose was high enough to cause respiratory muscle paralysis and a comatose state. Only in few other reported cases (Chen, Bright, & Trivedi, 2015; Morley, Slaughter, & Smith, 2017; Seo, Kim, & Yu, 2016), ingested nicotine dose was high enough to cause patient death, however, due to CA. In our case, there could be multiple mechanisms causing brain damage. The respiratory muscle paralysis, resulting in a reduced oxygen supply at the CNS level, could have determined a hypoxic encephalopathy. However, both the neurophysiological (EEG/SEPs) and neuroimaging data (brain CT), performed at an early stage (within 12 hr) after coma onset, did not show findings with high unfavorable neurological prognostic significance (Carrai et al., 2019; Scarpino, Carrai, et al., 2019; Scarpino, Grippo, Lanzo, & Lolli, 2018a; Scarpino, Lanzo, et al., 2018; Scarpino, Lolli, et al., FIGURE 2 Neuroimaging and neurophysiological data within 24h after coma onset: (a) brain CT: no signs of brain edema or other signs of severe hypoxic encephalopathy: gray matter/white matter (GM/WM) ratio = 1.32; (b) EEG: continuous EEG pattern with normal voltage and with inconstant reactivity (c, d) SEPs: bilateral presence with normal voltage of cortical response (N20) (SEP pattern NN) 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    • 4. 4 of 6  |     SCARPINO et al. 2019). In particular, the nearly continuous low-voltage EEG pattern, observed earlier than 12 hr after coma onset, as in our case, is usually associated with a good neurological outcome (Scarpino, Carrai, et al., 2019). Moreover, patients with hypoxic–ischemic encephalopathy (HIE) evolving toward BD usually show, in the first 24 hr after coma onset, a marked alteration of SEP cortical responses (SEP pattern AA or AP; Scarpino et al., 2017), while in our case, SEP cortical responses were bilaterally normal. At last, early brain CT also did not show evidence of severe edema suggestive of an evolution toward BD (GM/WM ratio > 1.07; Scarpino et al., 2017). However, in the following few days, the patient showed a progressive worsening of all the clinical and instrumental parameters, revealing a neurological deterioration: He lost the pupillary reflexes, SEPs transitioned from a NN pattern to an AP pattern, EEG became suppressed and isoelectric in the last days, and severe brain edema was detected on MRI. This progressive neurological deterioration might be related to the development of secondary brain damage, which is sometimes observed in patients with HIE after CA, even though, in our case, early clinical and instrumental data did not show features suggesting the occurrence of secondary brain damage (Scarpino, Carrai, et al., 2019). However, it is possible that nicotine intoxication, having caused only respiratory muscle paralysis, without CA, might have triggered mechanisms of hypoxic brain damage that could be different from those of classic HIE, and, for this reason, the current neurological prognostic evidence for HIE may not be reliable, since they were based on data from patients who all experienced CA. At last, besides the hypoxic damage, we cannot exclude that high doses of nicotine could have also caused direct neuronal apoptosis, secondary to an increase in the release of excitatory neurotransmitters at the CNS level (Dobelis et al., 2003). At the same time, nicotine, binding to specific nicotinic receptors and consequently causing an increase in acetylcholine release and depolarization of cerebral microvascular muscles, might cause diffuse vasoconstriction and thrombosis (Maessen et al., 2020). These phenomena, causing severe and diffuse brain ischemia, might have determined a worsening of the brain edema. However, in our opinion, brain damage due to mechanisms related to the direct action of nicotine on the CNS would be less likely, because nicotine usually shows early action with a rapid transition to its inactive metabolite (Figure 1); consequently, its neurological effects should also be evident at an early stage after ingestion/injection (Maessen FIGURE 3 Neurophysiological and neuroimaging data four days after coma onset: (a) MRI: hyperintensity on fluid-attenuated inversion recovery-weighted imaging at bilateral parieto-occipital lobes and at frontal level: (b) EEG: EEG suppressed pattern; (c, d) SEPs: bilateral deterioration of the cortical responses with a pattern pathological (c) and absent (d) 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    • 5.      | SCARPINO et al.  5 of 6 et al., 2020), which is different from our case. At last, a large literature suggests a neuroprotective effect of nicotine, mainly in chronic neurological degenerative condition such as cognitive deterioration (Alkadhi, 2018), Parkinson's disease (Quik, Bordia, Zhang, & Perez, 2015), and Tourette's syndrome (Quik, Bordia, Zhang, & Perez, 2014). However, this protective effect, as well as central or peripheral nervous system stimulation with arousal and increase in heart rate or blood pressure, is induced by low dose of nicotine, different from our case. 4 | CONCLUSION The constant reporting of cases of nicotine intoxication through eliquid both accidental or intentional is an important goal in order to raise the awareness of the Food and Drug Administration in improving regulatory parameters for e-liquid and in increasing the monitoring of online stores. Because nicotine intoxication might cause respiratory muscle paralysis, without CA, it would be important to understand the mechanisms underlying brain damage and to take into account that the current neurological prognostic evidence for HIE may not be reliable. CONFLICT OF INTEREST None of the authors has any conflict of interest to disclose. AUTHOR CONTRIBUTIONS Maenia Scarpino, Manuela Bonizzoli, Cecilia Lanzi, Chiara Lazzeri, Giovanni Cianchi, and Francesco Gambassi participated in the clinical practice, including diagnosis, treatment, consultation, and during the ICU stay of the patient. Giovanni Lanzo, Cecilia Lanzi, and Chiara Lazzeri contributed to the acquisition of data. Maenia Scarpino, Cecilia Lanzi, and Chiara Lazzeri contributed to the analysis of data. Maenia Scarpino wrote the manuscript. Antonello Grippo and Francesco Lolli revised the manuscript. All authors approved the final version of the manuscript. PEER REVIEW The peer review history for this article is available at https://publo ns.com/publon/10.1002/brb3.1744. DATA AVAILABILITY STATEMENT The data that support the findings of this study are available from the corresponding author upon reasonable request. ORCID Antonello Grippo https://orcid.org/0000-0002-9997-8564 REFERENCES Alkadhi, K. A. (2018). Neuroprotective effects of nicotine on hippocampal long-term potentiation in Brain Disorders. Journal of Pharmacology and Experimental Therapeutics, 366, 498–508. https:// doi.org/10.1124/jpet.118.247841 Benowitz, N. L. (2008). Clinical pharmacology of nicotine: Implications for understanding, preventing, and treating tobacco addiction. Clinical Pharmacology and Therapeutics, 835, 31–41. Carrai, R., Scarpino, M., Lolli, F., Spalletti, M., Lanzo, G., Peris, A., … Grippo, A. (2019). Early-SEPs’ amplitude reduction is reliable for poor-outcome prediction after cardiac arrest? Acta Neurologica Scandinavica, 139, 158–165. https://doi.org/10.1111/ane.13030 Cervellin, G., Luci, M., & Bellini, C. (2013). Badnewsabout an oldpoison. A case of nicotine poisoningdue to bothingestion and injection of the content of an electronic cigarette refill. Emergency Care Journal, 9, 18. https://doi.org/10.4081/ecj.2013.e18 Chen, B. C., Bright, S. B., & Trivedi, A. R. (2015). Death following intentional ingestion of e-liquid. Clinical Toxicology, 53, 914–916. https:// doi.org/10.3109/15563650.2015.1090579 Dobelis, P., Hutton, S., & Lu, Y. (2003). GABAergic systems modulate nicotinic receptor-mediated seizures in mice. Journal of Pharmacology and Experimental Therapeutics, 306, 1159–1166. https://doi.org/10.1124/ jpet.103.053066 Food and Drug Administration, HHS. (2016). Deeming tobacco products to be subject to the Federal Food, Drug, and CosmeticAct, asamended by the Family Smoking Prevention and Tobacco Control Act; Restrictions on the sale and distribution of tobacco products and require warning statements for products. Final rule. Federal Register, 81, 28973–29106. Maessen, G. C., Wijnhoven, A. M., Neijzen, R. L., Paulus, M. C., van Heel, D. A. M., Bomers, B. H. A., … van der Heyden, M. A. G. (2020). Nicotine intoxication by e-cigarette liquids: A study of case reports and pathophysiology. Clinical Toxicology, 58, 1–8. https://doi. org/10.1080/15563650.2019.1636994 Mayer, B. (2014). How much nicotine kills a human? Tracing back the generallyacceptedlethal dose to dubious self-experiments in the nineteenth century. Archives of Toxicology, 88, 5–7. https://doi. org/10.1007/s00204-013-1127-0 Morley, S., Slaughter, J., & Smith, P. R. (2017). Death from ingestion of e-liquid. The Journal of Emergency Medicine, 53, 862–864. https://doi. org/10.1016/j.jemermed.2017.06.029 Quik, M., Bordia, T., Zhang, D., & Perez, X. A. (2014). Role for the nicotinic cholinergic system in movement disorders; therapeutic implications. Pharmacology & Therapeutics, 144, 50–59. https://doi.org/10.1016/j. pharmthera.2014.05.004 Quik, M., Bordia, T., Zhang, D., & Perez, X. A. (2015). Nicotine and nicotinic receptor drugs: Potential for Parkinson's disease and drug-induced movement disorders. International Review of Neurobiology, 124, 247–271. Scarpino, M., Carrai, R., Lolli, F., Lanzo, G., Spalletti, M., Valzania, F., Grippo, A., & (2019). Neurophysiology for predicting good and poor neurological outcome at 12 and 72 h after cardiac arrest: The ProNeCA multicentre prospective study. Resuscitation, 147, 95–103. Scarpino, M., Grippo, A., Lanzo, G., & Lolli, F. (2018). The burden of clinical neurophysiology for the neurological prognosis of coma. Future Neurology, 13, 127–129. https://doi.org/10.2217/fnl-2018-0013 Scarpino, M., Lanzo, G., Lolli, F., Carrai, R., Moretti, M., Spalletti, M., … Grippo, A. (2018). Data on multimodal approach for early poor outcome (Cerebral Performance Categories 3–5) prediction after cardiac arrest. Data in Brief, 19, 704–711. https://doi.org/10.1016/j. dib.2018.05.118 Scarpino, M., Lanzo, G., Lolli, F., Moretti, M., Carrai, R., Migliaccio, M. L., … Grippo, A. (2017). Is brain computed tomography combined with somatosensory evoked potentials useful in the prediction of brain death after cardiac arrest? Neurophysiologie Clinique, 47, 327–335. https://doi.org/10.1016/j.neucli.2017.07.002 Scarpino, M., Lolli, F., Lanzo, G., Carrai, R., Spalletti, M., Valzania, F., … Grippo, A. (2019). Neurophysiology and neuroimaging accurately predict poor neurological outcome within 24 hours after cardiac arrest: The ProNeCA prospective multicentre prognostication study. 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License
    • 6. 6 of 6  |     SCARPINO et al. Resuscitation, 143, 115–123. https://doi.org/10.1016/j.resuscitat ion.2019.07.032 Seo, A. D., Kim, D. C., & Yu, H. J. (2016). Accidental ingestion of E-cigarette liquid nicotine in a 15-month-old child: An infant mortality case of nicotine intossication. Korean Journal of Pediatrics, 59, 490–493. How to cite this article: Scarpino M, Bonizzoli M, Lanzi C, et al. Brain death following ingestion of E-cigarette liquid nicotine refill solution. Brain Behav. 2020;10:e01744. https:// doi.org/10.1002/brb3.1744 21579032, 2020, 9, Downloaded from https://onlinelibrary.wiley.com/doi/10.1002/brb3.1744 by National Health And Medical Research Council, Wiley Online Library on [15/12/2024]. See the Terms and Conditions (https://onlinelibrary.wiley.com/terms-and-conditions) on Wiley Online Library for rules of use; OA articles are governed by the applicable Creative Commons License


    • Previous
    • Next
    • f Fullscreen
    • esc Exit Fullscreen
